Connection Cables for EV Charging Cables and Charging Systems
HEW-KABEL has been developing and producing customized special cables and automotive wires for the automotive industry for more than 50 years. As a responsive, reliable, and high-performance partner, we supply automotive manufacturers and system suppliers with innovative cabling solutions.
HEW CHARGE
High-Performance EV Charging Connection Cables
For fast and safe charging of electrically powered vehicles, HEW-KABEL manufactures charging connection cables that are characterized by extreme flexibility, high temperature resistance and immense mechanical load capacity. Our portfolio includes the appropriate connection cables for the cable-based charging of electric vehicles.
- public charging stations
- wallboxes
- mobile charging cables
The Perfect Cable for You
Single or multi-core, shielded or unshielded cables with material combinations of fluoropolymers, thermoplastics, silicone or special materials enable customized solutions for safe connections.
Our Product Range Includes...
AC Charging Connection Cables
- Charging with alternating current
- 3 to 5 power cores for power supply
- Charging current transmission up to 43 kW
- 1 to 3 pilot wires
- Signal transmission
DC Charging Connection Cables
- Charging with direct current
- Signal transmission
- High charging current transmission
Engineered for Peak Performance that Meets Your Needs
EV charging cables from HEW are...
- mechanically highly stressable
- resistant to bending
- abrasion resistant
- flexible
- spiralisable
- tested
We Are Experts in Charging Infrastructure Cables
The transformation to climate-friendly mobility can only succeed if the acceptance of electrically powered vehicles continues to grow among the population. A central influencing factor is the expansion of the private and public charging infrastructure.
HEW-KABEL is your partner for reliable EV charging connection cables that allow convenient and safe operation of the charging system. Depending on the charging system and handling, suitable cables of the highest quality are available. With sophisticated, high-performance and user-friendly solutions, we actively drive the electromobility transformation.
Examples of Our Cable Solutions
Charge EV
| HEW-EPR/TPE-U-Leitung | ||
|---|---|---|
| Aufbau | RHY- Cu blk 3x2,5 mm² (45x0,254 mm) + 1x0,5 mm² (19x0,182mm) | |
| Außendurchmesser | (9,6 +0,4/-0,3) mm | |
| Temperaturbereich | -40 °C bis +90 °C | |
| Gewicht | 142 kg/km | |
| Biegeradius | feste Verlegung | freie Bewegung |
| 5 x D | 9 x D | |
| Nennspannung | 450 / 750 V | |
| Prüfspannung (Ueff) | DIN EN 62230 | 6,0 kV AC (Sparktest) Adern |
| DIN EN 62230 | 9,0 kV AC (Sparktest) Mantel | |
| DIN EN 50620 | 3,5 kV AC (Ader/Ader) | |
Charge EV 2
| HEW-EPR/TPE-U-Leitung | ||
|---|---|---|
| Aufbau | RHY- Cu blk 5x6 mm² (84x0,301 mm) + 1x0,5 mm² (19x0,182mm) | |
| Außendurchmesser | (15,6 +0,4/-0,2) mm | |
| Temperaturbereich | -40 °C bis +90 °C | |
| Gewicht | 448 kg/km | |
| Biegeradius | feste Verlegung | freie Bewegung |
| 5 x D | 9 x D | |
| Nennspannung | 450 / 750 V AC | |
| Prüfspannung (Ueff) | DIN EN 62230 | 6,0 kV AC (Sparktest) Adern |
| DIN EN 62230 | 5,0 kV AC (Sparktest) Mantel | |
| DIN EN 62230 | 12,0 kV AC (Sparktest) Mantel | |
| DIN EN 50620 | 3,5 kV AC / 15 min (Ader/Ader) | |
Our Products in Use
Please click on the plus symbols in the image for more information.
Manufactured According to Standard
Our cables meet the standard norms for charging cables
EN 50620
IEC 62893
Cable Assemblies
We offer you the option to have our cables assembled directly by our subsidiaries.

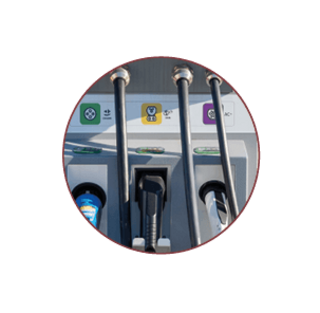

Public Charging Stations DC
- faster charging with direct current
- charging power up to 350 kW
- in Europe typically with CCS2 plug

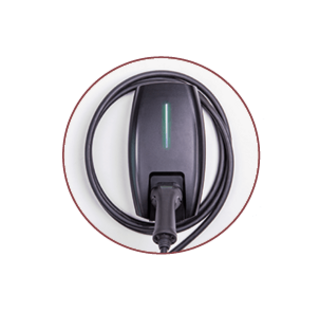

Wall Boxes
- charging in the domestic environment
- charging power up to 22 kW
- in Europe typically with type 2 plug
Public Charging Stations AC
- charging with alternating current
- charging power up to 43 kW
- in Europe typically with type 2 plug
INNOVATIVE CABLING SOLUTIONS
FOR A SUSTAINABLE FUTURE
HEW-KABEL has been developing and producing customised special cables and conductors for all industrial market segments for more than 50 years. As an internationally active company, we see ourselves with a special responsibility towards the greatest challenges of our time: climate protection and the energy transition.
We meet the goal of a sustainable electrification of the mobility world as well as the coverage of the energy demand from regenerative resources with a broad spectrum of flexible, high-quality and future-proof cabling solutions.
From power, communication and control cables for the efficient generation and distribution of renewable energy, to high-performance and user-friendly EV charging connection cables, to safe high-voltage cabling for electrically powered vehicles - HEW provides the answer with innovative cabling solutions for a sustainable future.
The Perfect Cable for You
Single- or multi-core, shielded or unshielded cables with material combinations of fluoropolymers, thermoplastics, silicone or special materials enable customer-specific solutions for safe connections in wind turbines.
Please get in touch with us. We will find the perfect solution!
