Cable Solutions for Wind Energy & Turbines
Solutions for Extreme Operating Conditions
For guaranteed safe cabling of your wind turbines, HEW-KABEL is by your side! Quickly and accurately - our full-service custom solutions have been developed specifically for the extreme operating conditions of wind-based power generation.
With more than 50 years of experience, we offer reliable and durable cabling solutions for various wind power applications, such as:
- Electric power generators
- Rotor de-icing systems
- Rotor braking systems
- Temperature monitoring
- Lightning protection
- Emergency shutdown
Our Products and Services Include ...
Data Cables
- Shielded cables
- Bus cables
- Sensor cables
- Drive control
Control Lines
- Control of actuators (motors)
- Signal transmission of the fire alarm system
- Signal transmission of the slip ring
Servo Lines / Power Lines
- Power supply of the actuators
- Transmission of power currents
Hybrid Lines
- Combination of different applications in a single line (e.g. control and power line)
Customized Cables According to Individual Customer Requirements
We offer customized special cables in quantities as low as 110 yards.
Designed for maximum performance that meets your every need.
Cables from HEW-KABEL are resistant to:
- Wear
- Bending
- Torsion
- Notch
- Temperature
- Oil and chemical
- UV and ozone
- Tested and certified
Cable structure, material selection and manufacturing processes are determined on an individual basis to ensure that the cable matches your requirements exactly.
Our cabling solutions are extremely versatile, exceptionally temperature resistant and highly mechanically resilient. This enables us to actively minimize service costs over the entire service life of your wind turbine.
| HEW silicone/polyester conductor SIFGA-Cu vz (4 - 185) mm² 13.8 kV | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cross section | 4 | 6 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Environmental temperature | Permissible continuous current (A) | |||||||||||
| 40°C | 69 | 89 | 121 | 162 | 214 | 262 | 327 | 402 | 485 | 560 | 642 | 730 |
| 80°C | 58 | 74 | 102 | 137 | 180 | 222 | 276 | 340 | 410 | 473 | 542 | 617 |
| 120°C | 45 | 58 | 79 | 106 | 139 | 171 | 214 | 263 | 317 | 366 | 420 | 477 |
| 150°C | 31 | 41 | 55 | 61 | 81 | 99 | 123 | 152 | 183 | 211 | 297 | 338 |
HEW CABLE SOLUTIONS in Windenergy
Please click on the plus icons on the image for more information.

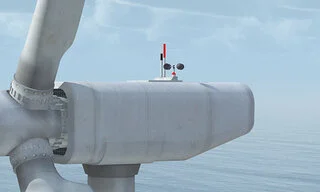

Lightning protection
For the safe discharge of lightning strikes, as well as the protection of the technology in the nacelle and the rotor blades, our ERP/TPE-U conductor lines are recommended.

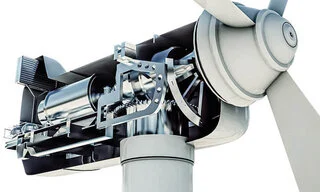

Generator
For cabling of motors, generators and transformers we recommend silicone cable with polyester braiding + impregnation. This cable also has good mechanical resistance and can be used for temperatures up to +180°C.

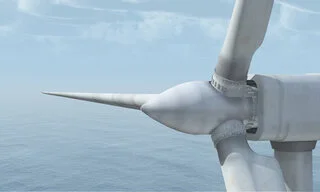

Rotor blade heating
Here, our heating cables are mainly used in the production of rotor blades. By heating the two rotor blade parts in a certain temperature range, they are joined together to form a finished rotor blade.

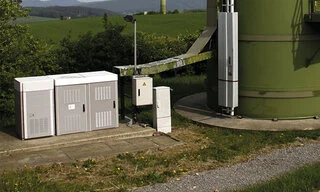

Control cabinet
We also recommend silicone cable with polyester braiding and impregnation for the wiring of the control cabinets. This cable also has good mechanical resistance and can be used for temperatures up to +180°C.
Examples of Our Cable Solutions
Generator
| HEW Silicone/Polyester Adreleitung | |||||
|---|---|---|---|---|---|
| Structure | SIFGA- Cu vz 95 mm² 1,1kV | ||||
| Outer diameter | (18.6 ± 0.9 mm) | ||||
| Temperature range | -50°C to +180°C | ||||
| Bending radius | fixed installation: 4 x D | ||||
| Permissible continuous current | Environmental temperature | 30°C | 60°C | 90°C | 120°C |
| Ampere | 594 | 538 | 472 | 391 | |
Generator 1
| HEW Silicone/Polyester Adreleitung | |||||
|---|---|---|---|---|---|
| Structure | SIFGA- Cu vz 185 mm² 1,1kV | ||||
| Outer diameter | (24.5 ± 1.2 mm) | ||||
| Temperature range | -50°C to +180°C | ||||
| Bending radius | fixed installation: 4 x D | ||||
| Permissible continuous current | Environmental temperature | 30°C | 60°C | 90°C | 120°C |
| Ampere | 890 | 806 | 708 | 587 | |
Generator 2
Lightning protection
| HEW EPR/TPE-U core cable | ||
|---|---|---|
| Structure | RY- Cu blk 50 mm² (392x0,0404mm) 600V | |
| Outer diameter | (15.4 ± 0.5 mm) | |
| Bending radius | fixed installation 7.5 x D | free movement 16 x D |
Rotor Blade Heating
| HEW silicone/polyester core cable | |||
|---|---|---|---|
| Structure | SIFGA- Cu vz 240 mm² (1221x0,5mm) 3,3 kV | ||
| Outer diameter | (28.4 ± 0.4 mm) | ||
| Temperature range | fixed installation -55°C to 180°C | free movement -50°C to +180°C | |
| Bending radius | 7.5 x D | 15 x D | |
| Permissible continuous current | Environmental temperature | 20°C | 90°C |
| Ampere | 950 | 720 | |
Emergency Stop
| HEW PTFE heating cable | ||
|---|---|---|
| Structure | TE-WM 1.000 Ohm/km (7x0,30 mm) 300/500V | |
| Outer diameter | (28.4 ± 0.4 mm) | |
| Temperature range | -190°C to +260°C | |
| Bending radius | fixed installation 7.5 x D | free movement 15 x D |
Rotor Blade Heating
New at HEW-KABEL
robotic solutions
HEW develops and manufactures special cables for the application in wind turbines. These cables are assembled by our subsidiary robotic solutions from a single source - whether prototypes or series production. For these purposes, we offer a broad portfolio of ready-to-use solutions including:
Cable protection sleeves
- Predestined for heavy duty applications
- High abrasion resistance, highest flexibility
- For applications ranging from -58°F to + 302°F
Pre-assembled cables
- Primary cables
- Bus cables
- Motor cables
- Servo cables
The Perfect Cable for You!
Whether single or multi-core, shielded or unshielded, these cables with material combinations of fluoropolymers, thermoplastics, silicone, or special materials enable customized solutions for safe and secure connections in wind turbines.
Please get in touch with us. We will find the perfect solution!
