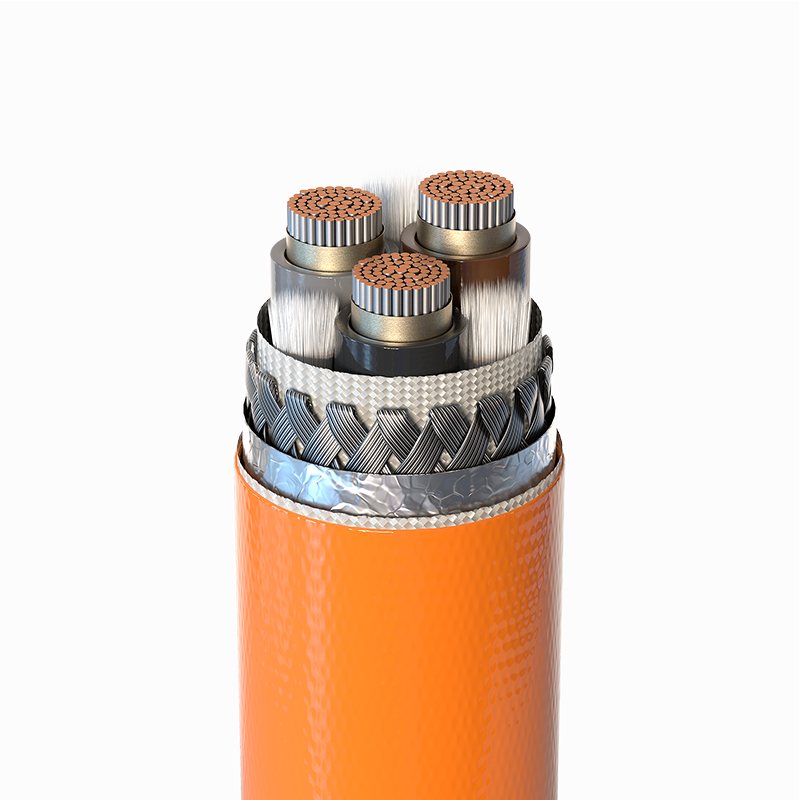

Hybrid Cables
Hybrid cables combine power, signal, data, and, where required, additional functional elements within a single cable construction. In addition to conductors with different cross-sections and transmission technologies, coaxial cables, fibre optic elements, pneumatic or fluid hoses, as well as strength members or other functional components can be integrated into one custom-engineered cable. This enables multiple individual cables to be replaced by a single compact solution tailored precisely to the application's requirements.
As systems become more compact and functionally integrated, factors such as installation space, cable routing, electromagnetic compatibility, flexibility, and mechanical durability become increasingly important. Combining different transmission media and functional elements within one hybrid cable requires a carefully engineered construction to ensure that each component performs reliably without compromising the performance of the others.
We recommend considering a custom hybrid cable whenever integrating different cable types or additional functional elements can simplify system integration, reduce installation effort, or make more efficient use of available installation space. Habia develops hybrid cables by optimizing conductor design, shielding concepts, insulation systems, material selection, cable geometry, and the arrangement of all integrated elements. The result is a fully integrated cable solution that reliably transmits power, signals, data, and other media while meeting the exact electrical, mechanical, and environmental requirements of the application.
The Unique Strengths of Habia Cables and Habia as a Cable Manufacturer
The performance of a hybrid cable is based on the combination of multiple cable types within a single construction. Careful engineering is required to successfully integrate power, signal, data, coaxial, fibre optic, pneumatic and fluid elements, ensuring that every component performs reliably without compromising the others. Conductor design, shielding concepts, material selection, cable geometry, and the physical arrangement of all functional elements must be precisely optimized to achieve reliable long-term performance.
With decades of experience in specialty cable engineering and manufacturing, Habia supports customers from the earliest stages of product development. Our engineering teams evaluate electrical requirements, installation space, movement profiles, EMC requirements, environmental conditions, and the interaction between all integrated elements to develop a technically and commercially optimized hybrid cable solution. This collaborative development process simplifies system architecture, reduces assembly effort, minimizes the number of individual cables and connectors, and improves overall system reliability. The result is a custom-engineered hybrid cable that integrates seamlessly into the final product while delivering reliable performance throughout its entire service life.
Insulation and Jacket Materials for Hybrid Cables
Selecting the right insulation and jacket material is a key factor in the design of a hybrid cable. Because hybrid cables combine different transmission technologies and functional elements within a single construction, every material must be selected to meet the specific electrical, mechanical, thermal, chemical, and environmental requirements of the application. Drawing on decades of expertise in specialty cable engineering, Habia combines a wide range of high-performance materials to develop hybrid cable solutions that deliver optimum performance, reliability, and system integration.
-
PTFE
PTFE (Polytetrafluoroethylene) is the benchmark material for demanding hybrid cable designs requiring exceptional dielectric performance, outstanding chemical resistance, and excellent temperature stability. It is particularly suitable for high-frequency, high-temperature, and electrically demanding applications.
-
PE
PE (Polyethylene) features very low dielectric losses and excellent electrical insulation properties, making it ideal for high-frequency transmission, coaxial cables, and high-speed data elements integrated within hybrid cable constructions.
-
Silicone Rubber
Silicone maintains exceptional flexibility over a wide temperature range while providing excellent thermal stability. It is recommended where hybrid cables require flexibility together with reliable operation under extreme temperatures.
Certificates and Approvals
Habia holds extensive approvals for various industries and specialized fields. For more information, please contact us.
Applications
Hybrid cables are used wherever multiple transmission media and functional elements must be combined within a single compact cable construction. Integrating power, signal, data, RF, fibre optics, pneumatic hoses, fluid lines, or other functional components into one cable reduces installation space, simplifies assembly, and improves overall system reliability. Habia develops hybrid cables engineered to deliver reliable performance while meeting the electrical, mechanical, and environmental requirements of demanding applications.

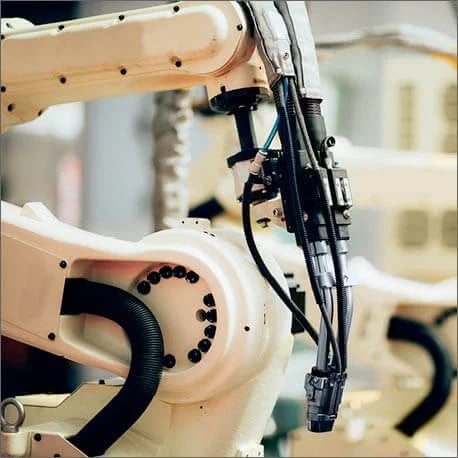

Robotics
Robotic systems benefit from hybrid cables that combine power, feedback, data communication, and additional functional elements in one flexible construction. Habia develops hybrid cable solutions engineered for continuous dynamic movement and exceptional flex life.

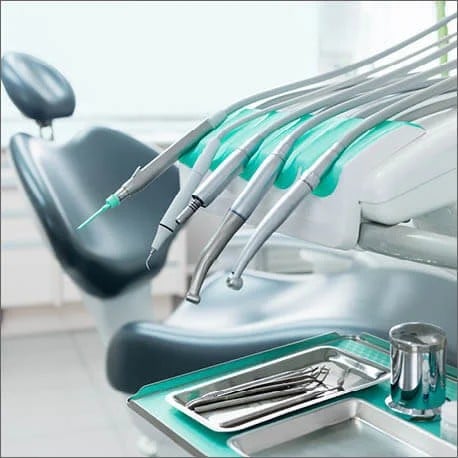

Medical Technology
Advanced medical equipment requires highly integrated cable solutions where installation space is limited and reliability is critical. Habia develops hybrid cables that combine multiple transmission technologies while supporting compact device designs and dependable long-term performance.
Railway & Transportation
Rail vehicles and transportation systems require reliable hybrid cable solutions that integrate multiple functions while minimizing installation complexity and maximizing operational reliability. Habia develops cable constructions designed to withstand vibration, mechanical stress, and demanding environmental conditions.
Your Custom Cable, Right at Your Fingertips
Developing high-performance hybrid cables means that every integrated element – including power conductors, signal and data lines, coaxial cables, fibre optics, pneumatic or fluid hoses, and additional functional components – must work together reliably without compromising the performance of the overall system. Achieving this requires the precise optimization of conductor design, shielding concepts, material selection, cable geometry, and the arrangement of all integrated elements.
From the initial concept and material selection through prototype development, qualification, and series production, Habia supports every stage of the development process. Our engineering teams develop custom hybrid cables that simplify system architecture, reduce installation space, minimize the number of individual cables and connectors, and improve assembly efficiency. The result is a fully integrated cable solution engineered to deliver reliable power, signal, data, and media transmission while providing long-term mechanical durability and seamless integration into the final product.
