We developed and produces application-specific miniature cables with cross-sections up to AWG56 (ø ≈ 0.0125 mm) as well as micro-coaxial cables up to AWG46 (ø ≈ 0.0399 mm).
What is barely visible to the eye has a lot going for it:
Designed as single cables or multi-coaxial cables, as ribbon or hybrid cables, our highly specialized mini-cables fulfil important functions, such as the absolutely reliable and interference-free transmission of various data in real time or the simultaneous transmission of data, light, liquids and electricity.
The use of high-performance materials and special alloys ensures mechanical robustness, while special shielding guarantees optimum EMC properties.
The trend towards miniaturaisation
In the course of technical developments, a clear trend towards miniaturization is emerging. Across all industries and applications, devices and components are not only becoming lighter and more compact, but also increasingly being equipped with more functions, electronics, sensors and capabilities for information processing. One consequence of these developments is the need for ever smaller cables in the face of simultaneously increasing demands on performance, reliability and mechanical robustness over long periods of time
Mini Cables for highly sensitive Applications
Our microscopic cables are mainly used in medical technology and industrial environments. Outstanding areas of application include highly sensitive applications such as:
Endoscopy
High frequency surgery
Minimally invasive surgical techniques
Miniaturised measurement and control technology
Miniaturised inspection systems
Robotics and industrial automation
Miniature HEW cables are....
Highly flexible
EMC safe
Microscopically small
due to the use of high-performance materials, such as
Copper (alloys),
Fibre optic cables,
Special Compounds
due to special shielding e.g.Tinned copper wire braid Copper wire rerouting with a high coverage of 92 to 95 % Wrapping with metal-coated foils
Miniature cables up to AWG56 Mini coaxial cables up to AWG46
Miniature cables: The supreme discipline of cable production
Miniature cables have no room for error. The smallest deviations during production can have fatal consequences for later operation. Therefore, the production of miniaturized cables, especially in the field of medical technology, is subject to strict guidelines.
We are aware of the great responsibility we have and use only specially trained personnel, specially developed production equipment and methods as well as high-performance materials for the development and production of miniature cables.
In order to offer a fail-safe function over the entire life cycle, both the structure of each micro cable and its material selection are precisely matched to the intended use.
Absolute precision, precisely tailored developments and product quality give users the reassuring feeling of maximum reliability and safety.
Advantages at a glance
Specialised know-how, precision and product safety
Individualised machines and production methods
High-tech materials
Competence in dealing with innovative special materials
Application-optimised cable properties and designs
Best practice solutions
Small batches
The optimum high-tech material for every cable
The materals used by us ensure optimum function of the mimiature cables even under extreme operating conditions.
HIghly flexible conductures
Special shielding
Precisely fitting insulation
We manufactures both flexible and highly flexible copper cables as well as special copper alloys.If required, fibre optic cables are also used.
Braids made of high-strength copper alloys, wrappings with specially braided individual wires or sheathing with metal-coated foils guarantee the best EMC properties.
Whether fluoropolymers, thermoplastics, high-performance thermoplastics, silicones or glass silk – HEW has the optimum insulation and sheathing material for your application.
The right solution for every application
As already mentioned, miniature cables are needed in all kinds of industries and applications nowadays. Therefore, we can only present a small excerpt of possible areas of application here.
However, due to our excellent material competence and patented manufacturing processes, we are able to create miniature cables for almost any task and according to your requirements.

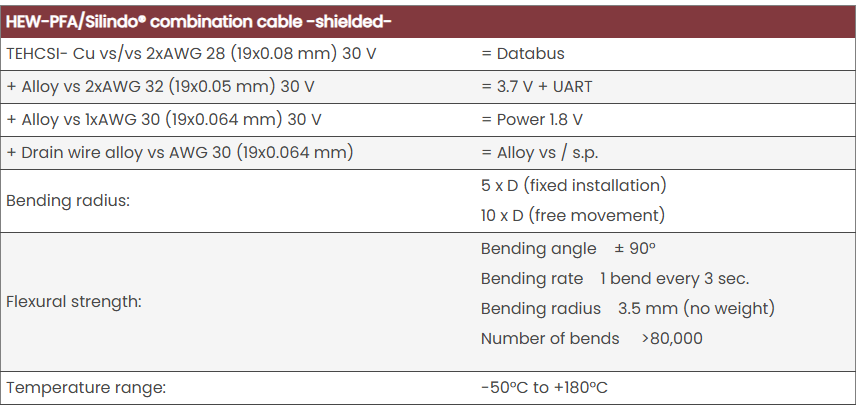

Example application in MEDICINE
Technological progress is increasingly penetrating operating theaters. Especially in the field of surgery, robots have become valuable assistants to doctors. In the reliable miniature cables for surgical robots, HEW-KABEL combines experience from robotics with the special requirements of medical technology.
The cable structures are based on the mechanical influences of robotics, such as tension or torsion, but are also optimized for use in medical technology. This results in, for example, highly flexible and biocompatible miniature hybrid cables that provide both excellent signal transmission and power transfer. HEW-Silindo® provides a smooth surface and allows more than 500 sterilization cycles.

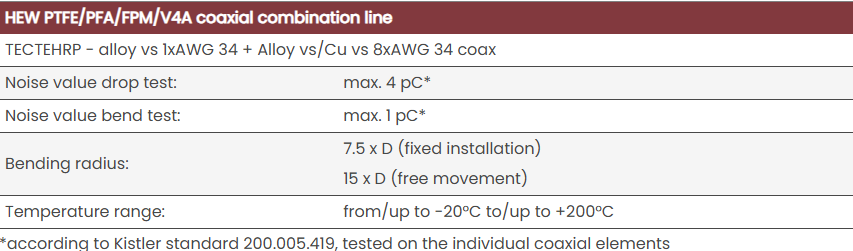

Example application in METROLOGY
The measurement and control technology sector is also following the trend towards miniaturization of components. In ever more powerful devices, increasing amounts of data are being processed and visually displayed in ever shorter times. Our mechanically resilient miniature cables unite interference-free and low-noise transmission of signals, data and images under a common sheath.
When it comes to the internal or external cabling of your industrial robots, We are at your disposal quickly and flexibly - with customer-specific all-in-one solutions that have been specially developed for the extreme operating conditions of robot-based automation.
Wide range of custom-tailored wires, cables for wind turbine applications. Solutions include low voltage and medium-voltage cables for wind turbine towers, rotor generators and for connecting to grid.
Wide range of medical sensor cables, including micro cables for ultra-sensitive applications. These include endoscopy, high-frequency surgery, minimally invasive operating techniques, robotic keyhole surgery, miniaturized instrumentation, control, and inspection systems.
